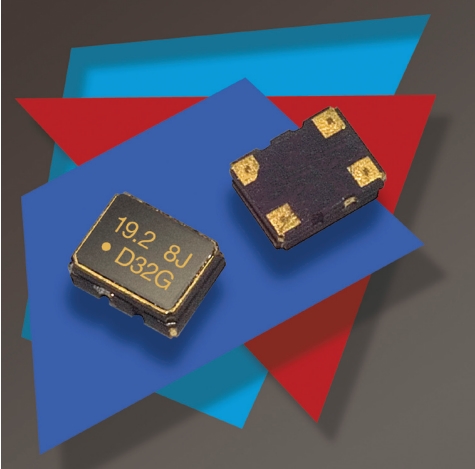

Connor-Winfield宣布新的超微型精密3225mmTCXO編碼D32G-019.2M-T，Aurora, IL — The Connor-Winfield D32G Series are 3.2x2.5 mm Surface Mount Temperature Compensated Crystal Oscillators (TCXOs). Through the use of Analog Temperature Compensation, the D32G series are capable of holding sub 1 ppm stabilities over the –30 to 85°C temperature range. These TCXOs are ideal for use in GPS receivers, instrumentation, Femtocell, FTTH and FTTC applications requiring tight stability over a broad temperature range.
伊利諾伊州奧羅拉—Connor-Winfield 編碼D32G-019.2M-T，D32G系列的表面貼裝溫度為3.2x2.5毫米補償晶體振蕩器(TCXOs)。通過使用模擬溫度補償，D32G系列能夠在–30至85°C的溫度范圍內保持低于1ppm的穩定性溫度范圍。這些TCXOS溫補晶振非常適合GPS接收機、儀器儀表、毫微微蜂窩基站、FTTH和FTTC應用，這些應用要求在寬溫度范圍內具有嚴格的穩定性。

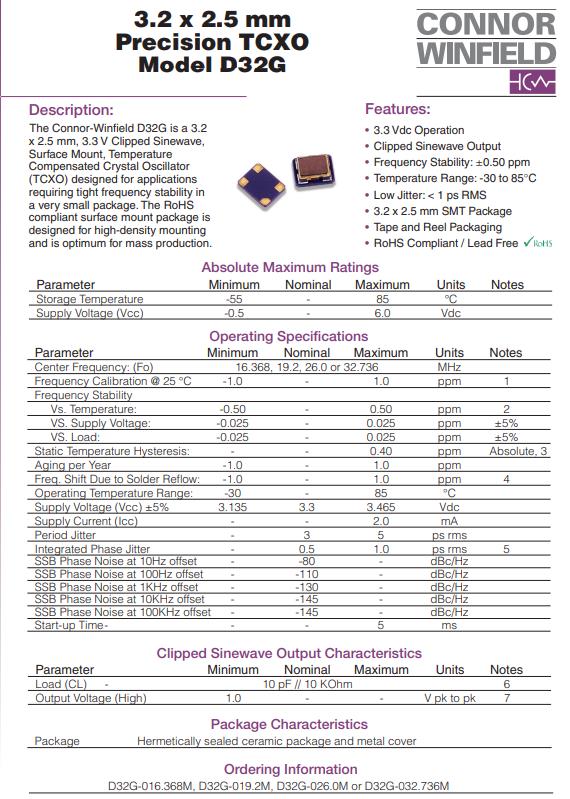

Connor-Winfield宣布新的超微型精密3225mmTCXO編碼D32G-019.2M-T，Product Features:
3.3VDC Operation
Clipped Sinewave Output Logic
Sub-Miniature 3.2x2.5mm SMT Package
Frequency Stability: ±0.50 ppm
emperature Range: -30 to 85°C
Low Jitter <1pS RMS
Low phase noise
Low aging
Tape and Reel Packaging
RoHs Compliant
Recommended for new designs
產品特點: 3.3VDC操作
削波正弦波輸出邏輯
超小型3.2x2.5毫米SMT封裝
頻率穩定性:0.50ppm
溫度范圍:-30至85攝氏度
低抖動<1pSRMS低相位噪聲
低老化
帶卷包裝
符合RoHs標準
推薦用于新設計
The ConnorWinfieldCrystal Corporation is a privately held, US based electronic product manufacturer. After incorporation in 1963, Connor-Winfield focused primarily on designing and manufacturing quartz based timing circuits and oscillators for use in a wide variety of electronics applications. In the 1990's, Connor-Winfield expanded into other product areas while maintaining a continued focus on its core timing roots.
Connor-Winfield公司是一家總部位于美國的私人電子產品制造商。1963年成立后，Connor-Winfield主要專注于設計和制造石英計時電路和石英晶體振蕩器，用于各種電子應用。在20世紀90年代，康納-溫菲爾德擴展到其他產品領域，同時繼續關注其核心計時根源。

原廠代碼	品牌	型號	頻率	工作溫度
CWX815-80.0M	Connor-Winfield振蕩器	CWX815	80MHz	-20°C ~ 70°C
CWX815-100.0M	Connor-Winfield振蕩器	CWX815	100MHz	-20°C ~ 70°C
HSM536-8.0000	Connor-Winfield振蕩器	HSM536	8MHz	0°C ~ 70°C
HSM536-10.0000	Connor-Winfield振蕩器	HSM536	10MHz	0°C ~ 70°C
HSM536-18.4320	Connor-Winfield振蕩器	HSM536	18.432MHz	0°C ~ 70°C
HSM536-20.0000	Connor-Winfield振蕩器	HSM536	20MHz	0°C ~ 70°C
HSM536-25.0000	Connor-Winfield振蕩器	HSM536	25MHz	0°C ~ 70°C
HSM536-32.0000	Connor-Winfield振蕩器	HSM536	32MHz	0°C ~ 70°C
HSM536-40.0000	Connor-Winfield振蕩器	HSM536	40MHz	0°C ~ 70°C
HSM536-50.0000	Connor-Winfield振蕩器	HSM536	50MHz	0°C ~ 70°C
HSM536-60.0000	Connor-Winfield振蕩器	HSM536	60MHz	0°C ~ 70°C
HSM536-64.0000	Connor-Winfield振蕩器	HSM536	64MHz	0°C ~ 70°C
HSM536-66.6666	Connor-Winfield振蕩器	HSM536	66.6666MHz	0°C ~ 70°C
HSM92-029.4912M	Connor-Winfield振蕩器	HSM9	29.4912MHz	0°C ~ 70°C
HSM92-044.2368M	Connor-Winfield振蕩器	HSM9	44.2368MHz	0°C ~ 70°C
D75J-038.88M-T	Connor-Winfield振蕩器	D75J	38.88MHz	0°C ~ 70°C
D75J-050.0M-T	Connor-Winfield振蕩器	D75J	50MHz	0°C ~ 70°C
D75J-040.0M-T	Connor-Winfield振蕩器	D75J	40MHz	0°C ~ 70°C
D75F-013.0M-T	Connor-Winfield振蕩器	D75F	13MHz	0°C ~ 70°C
D75F-019.44M-T	Connor-Winfield振蕩器	D75F	19.44MHz	0°C ~ 70°C
D75F-025.0M-T	Connor-Winfield振蕩器	D75F	25MHz	0°C ~ 70°C
D75F-027.0M-T	Connor-Winfield振蕩器	D75F	27MHz	0°C ~ 70°C
D53G-020.0M-T	Connor-Winfield振蕩器	D53G	20MHz	-30°C ~ 85°C
D53G-026.0M-T	Connor-Winfield振蕩器	D53G	26MHz	-30°C ~ 85°C
D32G-016.368M-T	Connor-Winfield振蕩器	D32G	16.368MHz	-30°C ~ 85°C
D32G-019.2M-T	Connor-Winfield振蕩器	D32G	19.2MHz	-30°C ~ 85°C
D32G-026.0M-T	Connor-Winfield振蕩器	D32G	26MHz	-30°C ~ 85°C
D75A-010.0M-T	Connor-Winfield有源晶振	D75A	10MHz	0°C ~ 70°C
D75A-012.8M-T	Connor-Winfield振蕩器	D75A	12.8MHz	0°C ~ 70°C
D75A-019.2M-T	Connor-Winfield振蕩器	D75A	19.2MHz	0°C ~ 70°C
D75A-020.0M-T	Connor-Winfield振蕩器	D75A	20MHz	0°C ~ 70°C
PM113-161.1328M-T	Connor-Winfield振蕩器	PM	161.1328MHz	0°C ~ 70°C
PM113-200.0M-T	Connor-Winfield振蕩器	PM	200MHz	0°C ~ 70°C
PM113-212.5M-T	Connor-Winfield振蕩器	PM	212.5MHz	0°C ~ 70°C
PM113-250.0M-T	Connor-Winfield振蕩器	PM	250MHz	0°C ~ 70°C
PM113-311.04M-T	Connor-Winfield振蕩器	PM	311.04MHz	0°C ~ 70°C
PM113-312.5M-T	Connor-Winfield振蕩器	PM	312.5MHz	0°C ~ 70°C
PM113-318.75M-T	Connor-Winfield振蕩器	PM	318.75MHz	0°C ~ 70°C
PM113-466.56M-T	Connor-Winfield振蕩器	PM	466.56MHz	0°C ~ 70°C
PM113-622.08M-T	Connor-Winfield振蕩器	PM	622.08MHz	0°C ~ 70°C
PM113-625.0M-T	Connor-Winfield振蕩器	PM	625MHz	0°C ~ 70°C
LM113-200.0M-T	Connor-Winfield振蕩器	LM113	200MHz	0°C ~ 70°C
LM113-288.0M-T	Connor-Winfield振蕩器	LM113	288MHz	0°C ~ 70°C
LM113-311.04M-T	Connor-Winfield振蕩器	LM113	311.04MHz	0°C ~ 70°C
LM113-312.5M-T	Connor-Winfield振蕩器	LM113	312.5MHz	0°C ~ 70°C
LM113-425.0M-T	Connor-Winfield振蕩器	LM113	425MHz	0°C ~ 70°C
D75AS-020.0M-T	Connor-Winfield振蕩器	D75AS	20MHz	0°C ~ 70°C
P123-155.52M	Connor-Winfield振蕩器	P	155.52MHz	0°C ~ 70°C
P122-155.52M	Connor-Winfield振蕩器	P	155.52MHz	0°C ~ 70°C
PM113-212.5M	Connor-Winfield振蕩器	PM	212.5MHz	0°C ~ 70°C
PM113-312.5M	Connor-Winfield振蕩器	PM	312.5MHz	0°C ~ 70°C

Connor-Winfield's frequency control products are used in a wide variety of applications including telecommunications, LAN and WAN products, computer, and other microprocessor and electronic equipment. We specialize in designing custom and semi-custom frequency control products but also offer a broad line of standard oscillator products and non-crystal based oscillators.
康納溫菲爾德晶振公司的頻率控制產品應用廣泛，包括電信、局域網和廣域網產品、計算機以及其他微處理器和電子設備。我們專門設計定制和半定制頻率控制產品，但也提供各種標準振蕩器產品和基于非晶體的振蕩器.

Connor-Winfield Global Timing Solutions encompasses two quartz crystal operations; a crystal oscillator design manufacturing group, and a timing products group that specializes in designing synchronous clocks, PLL modules, special function ASICs for telecommunication and data communication applications, and global position system (GPS) based timing solutions for synchronous Ethernet applications.
Connor-Winfield全球計時解決方案包括兩個石英晶振操作；一個晶體振蕩器設計制造組和一個定時產品組，專門設計同步時鐘、PLL模塊、用于電信和數據通信應用的特殊功能ASICs，以及用于同步以太網應用的基于全球定位系統(GPS)的定時解決方案。
